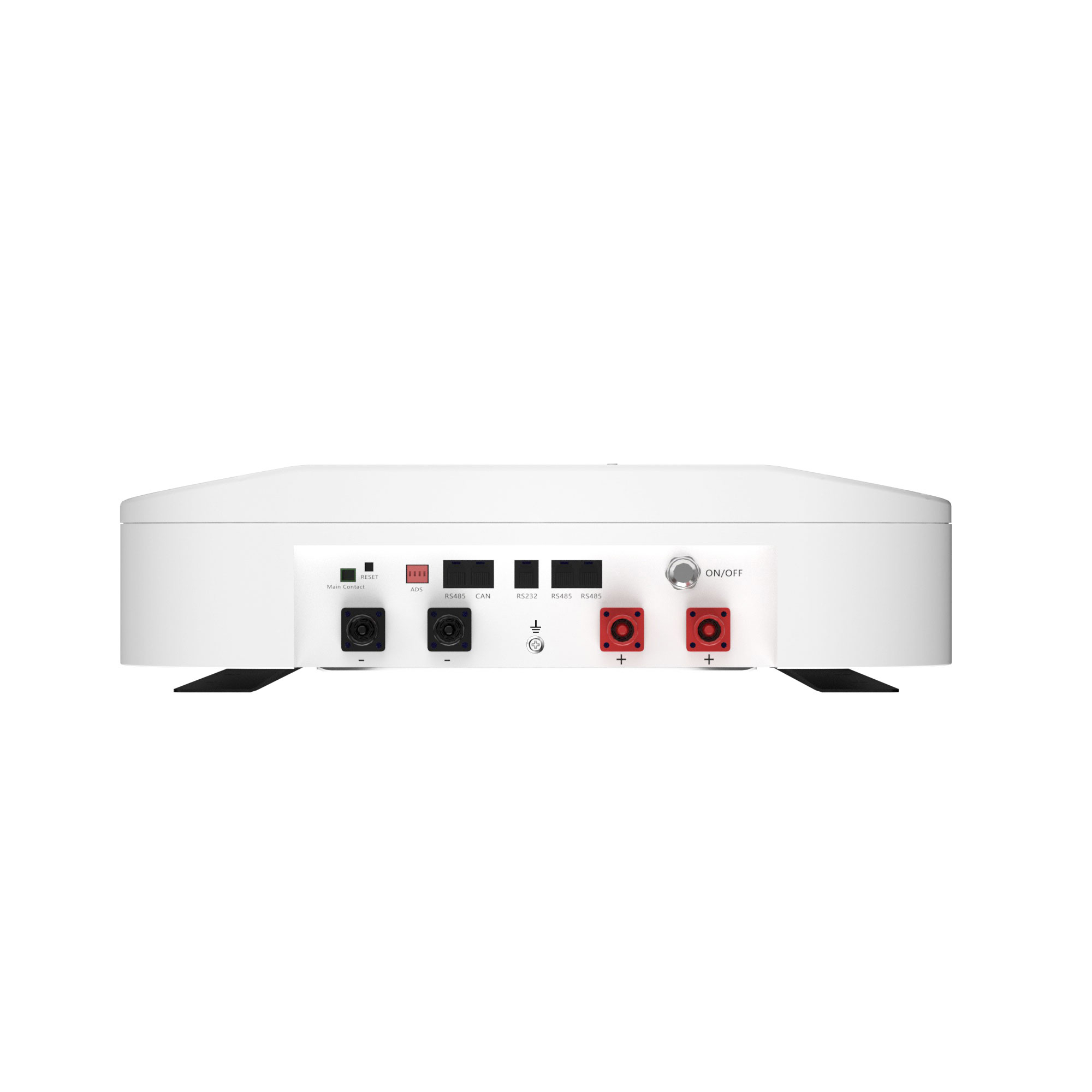

Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control

SKU: NXS-PW02-48100
4.7 (8)
286 Sold
$2,099.99 $0.00
  • Built-in soft start function, when the inverter needs to start from the battery, it can reduce the current impact
  • Double active protection at BMS level
  • Automatically set the address when multiple groups are connected
  • Support wake-up via 5~12V signal of RJ45 port
  • Support the host controller to upgrade the battery module through CAN or RS485/RS232 communication
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Power:
    100ah
    100ah
    200ah
    200ah
Quantity:
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
1/1
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Neexgentsolar 51.2v 100ah 200ah Slim Wall-mounted Lifepo4 Battery with Smart APP Control
  • Description
  • Parameters
  • Package Contents

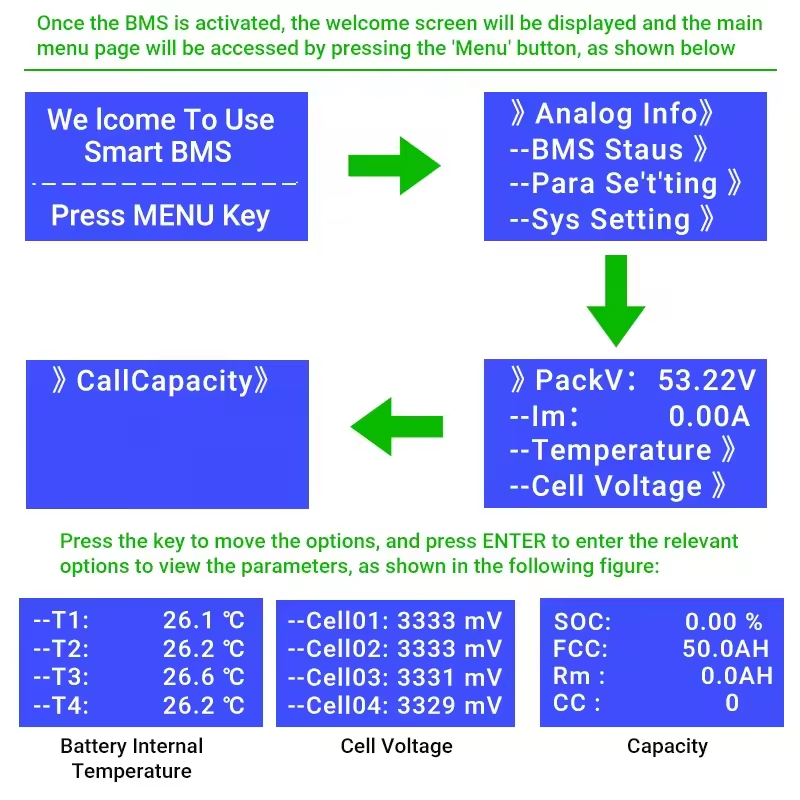

How to set the menu?

100ah Powerwall

Specification
ELECTRICAL PERFORMANCE
Model Number NXS-PW02-48100 NXS-PW02-48200
Nominal Voltage 51.2V 51.2V
Nominal Capacity 100Ah 200Ah
Capacity@20A 300 Min 300 Min
Energy 5120Wh 10240Wh
Communication

CAN2.0/RS232/RS485

Resistance

≤0.5 mΩ @ 50% SOC

Efficiency

>96%

Module Parallel

Up to 3 packs

CHARGE PERFORMANCE

Recommended Charge Current

10A 20A

Maximum Charge Current

100A

200A

Recommended Charge Voltage

57.6V

57.6V

BMS Charge Cut-Off Voltage

<58.4 V (3.65V/Cell)

Reconnect Voltage

>57.6 V (3.6V/Cell)

Balancing Voltage

<57.6 V (3.6V/Cell)

Maximum Batteries in Series

15 (*Consult NEEXGENT)

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current

100 A

200 A

Peak Discharge Current

110 A (3s)

205 A (3s)

BMS Discharge Cut-Off Current

150 A (300ms)

250 A (300ms)

Balancing open voltage

55.2V (3.45V/Cell)

Recommended Low Voltage Disconnect

44 V (2.75V/Cell)

BMS Discharge Cut-Off Voltage

>32.0V (2s) (2.0V/Cell)

Reconnect Voltage

>40.0 V (2.5V/Cell)

Short Circuit Protection

250 ~ 500 μ s

BASIC INFORMATIONS

Size(L*W*H)/cm

49.5*21.1*73

49.5*21.1*73

Weight/kg

98

98

Certifications

TUV, CE. EMC, MSDS

Note:
(1) After the battery module powered on, the soft-start function takes 3sec to active. After soft-starts battery ready to output high power
(2) During capacity expansion or replacement, when parallel different SOC/voltage of module together, please maintain the system in idle for ≥15mins or till the SOC LED becomes similarly(≤1dot difference) before normal operation.
(3) If the battery is stored for long time, it is required to charge them every six months, and the SOC should be no less than 90%.
(4)The battery needs to be charged within 12 hours, after full discharge.
(5) If the internal battery cells and LOGO need to be customized, please feel free to contact us.
The powerwall is packed with UN box and foam pieces
Powerwall battery pack *1
Communication cable *1
Power cable *1
Black and orange terminals *4
Battery manual *1
