Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v For Battery Pack

SKU:
0.0 (0)
0 Sold
$109.00 $99.00

c

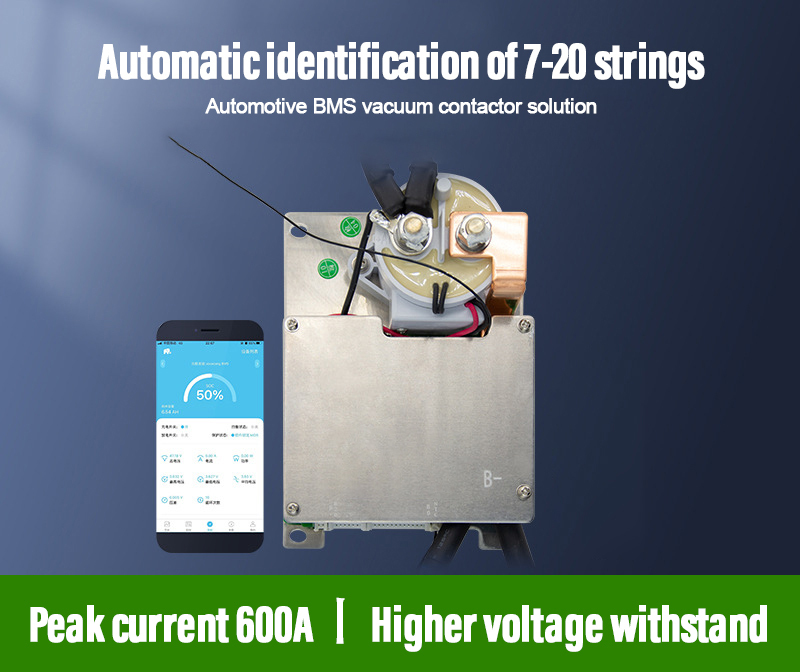

  • Automatic recognition of 7-20 battery cells.
  • High-precision voltage monitoring for safety and reliability.
  • Protection functions for charging/discharging.

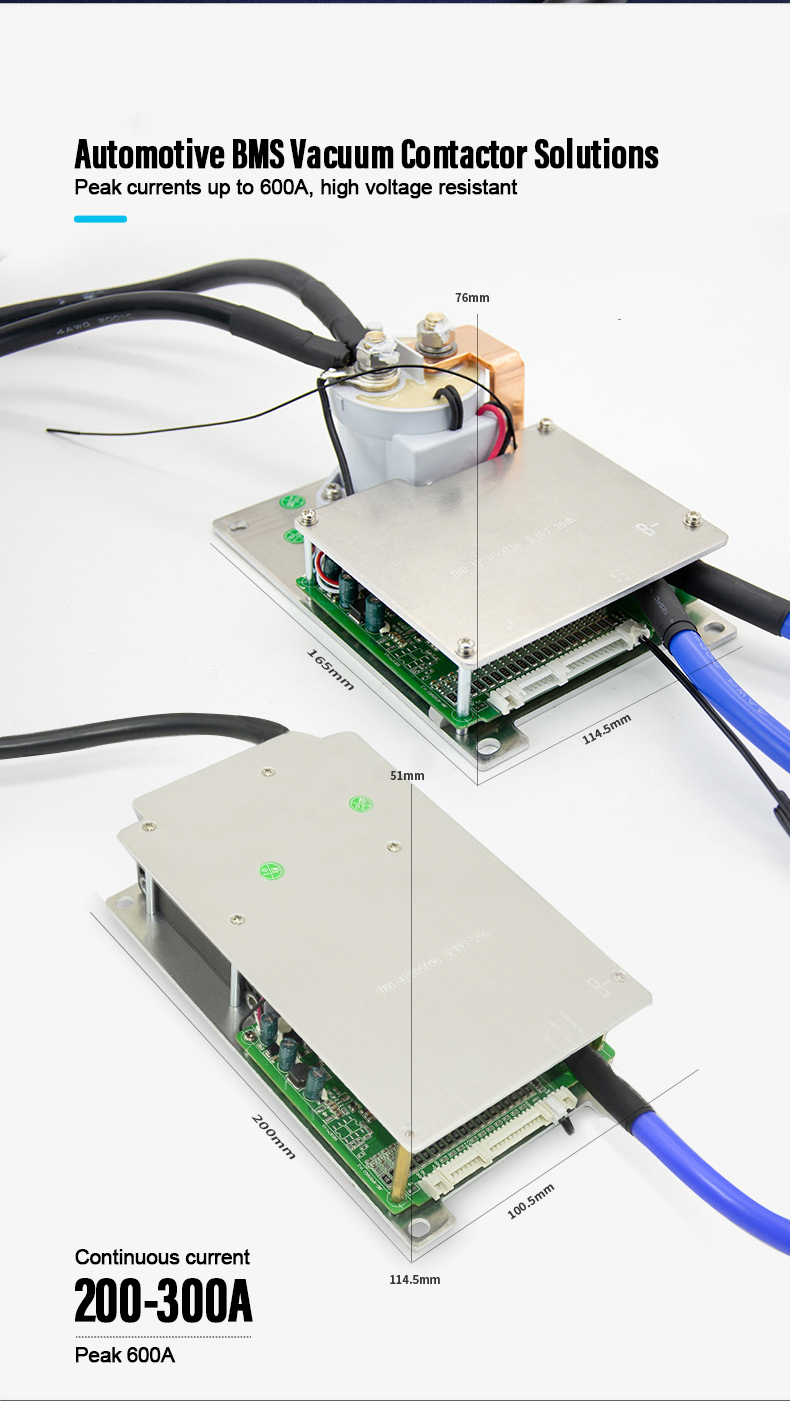

  • High-voltage power relay switch.
  • Accurate SOC calculation with automatic learning.
  • Bluetooth and optional RS485 or CAN communication.

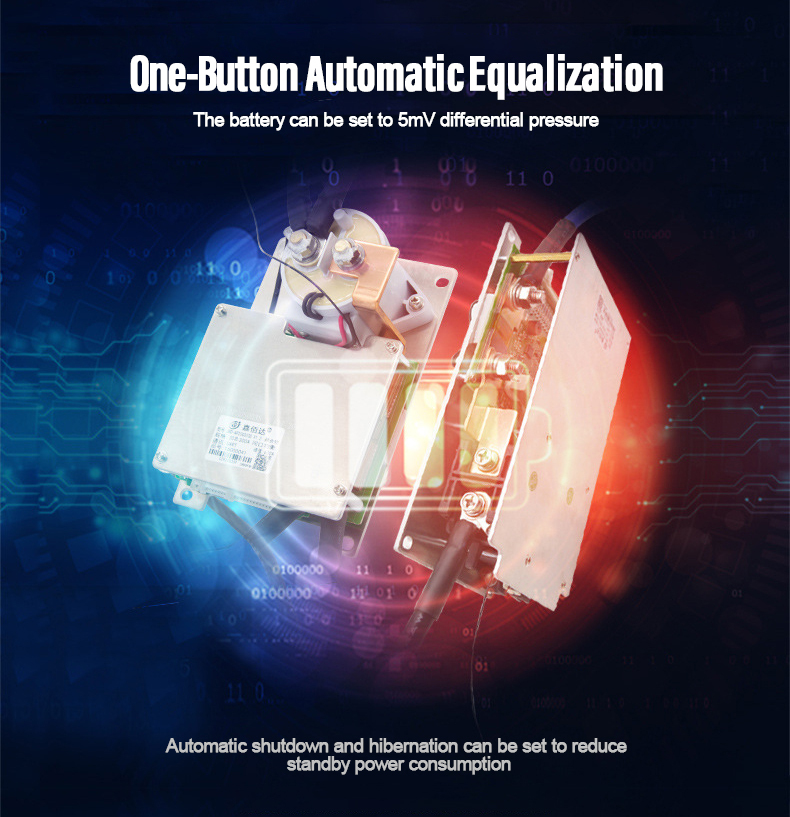

  • Pre-charge function to prevent surges.
  • Auto shutdown to reduce standby power.
  • Supports series connections up to 32 cells; parallel use not supported.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
1/1
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Smart BMS Pakistan Neexgent 7s Li-ion 8s 20s 16s 13s Lifepo4 200a 300a 72v 60v 48v 36v 24v  For Battery Pack
  • Description
Parameter:

Discharge current

200A

Discharge overcurrent protection value

300A delay time IOS; 100A delay time 1S

Internal resistance of main circuit conduction

1mΩ

Charging current (same mouth)

200A

Charging current protection

None

Charging voltage

Ternary battery string number X 42V

LiFePO4 battery string number X 3.6V



Overcharge protection

Equalization voltage

Overcharge protection: Ternary 4.25±0.03V LiFe 3.65±0.05V Open voltage

Ternary 3.6V±0.03V LiFe 3.35±0.03V

Protection delay time: 2000 mS

Open differential pressure: 10 mV

Recovery voltage: Ternary 4.15±0.05V LiFe 3.45±0.05V Balanced current

100-260mA



Over-discharge voltage protection

Discharge overcurrent protection

Protection voltage: Ternary 2.8±0.1V Lithium iron 2.5±0.1V

Overcurrent protection value: 300A for 10S

Protection delay time: 2000 mS

Recovery condition: 32s delayed release

Recovery voltage: 3.0 ±0.1 V





Short circuit protection

Temperature control protection

Detection delay time: 5000 uS

Discharge high temperature protection: 75±3℃

Release condition: disconnect the load and delay 60s to release

Discharge high temperature lifting temperature: 65±3℃



Self-consumption of electricity

Operating temperature

Operating power consumption: < 50 mA

Temperature range: -20℃ / +70℃
